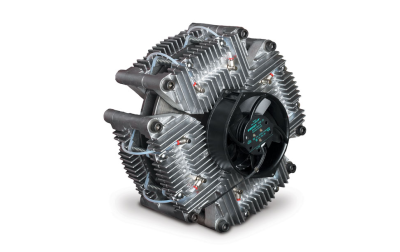

ModEvo - Modular Tension Brake

For light to medium tensioning applications. For dry operation only.


Features

• Modular design for maximum flexibility of operation

• Disc specially designed for good heat dissipation at low and high speeds

• Fan cooling is optional for even higher heat capacity

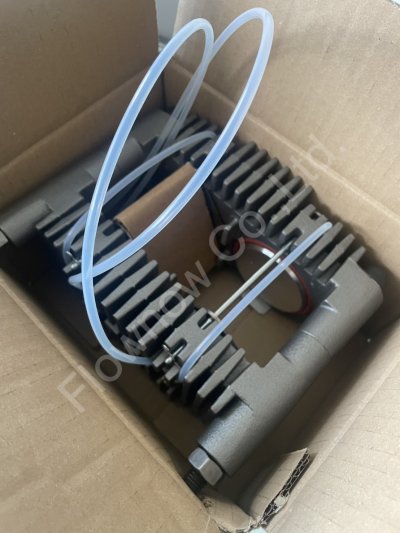

• Brake module is common to all disc sizes and contains two sets of air applied rolling diaphragm actuators.

• Three actuator sizes coupled with either standard or low-coefficient friction pads gives a wide range of flexibility and selection



Available parts

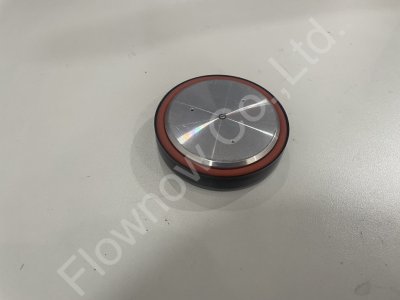

C40089-050     ACTUATOR ASSY MR

C40089-090     ACTUATOR ASSEMBLY

C40089-220     PISTON ACTUATOR ASSEMBLY

C40089-600     R D ACTUATOR 100

C40089-900     R D ACTUATOR ASSY-MAG./MIST

C78101-020     ACTUATOR RENEWAL KIT

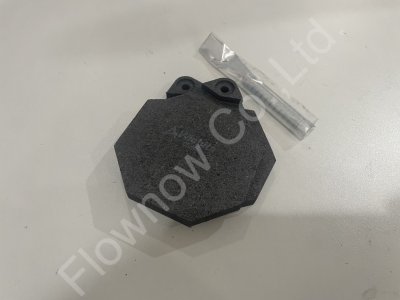

C78101-490     FRICTION PAD KIT

สอบถามข้อมูลเพิ่มเติม ติดต่อเรา

Flownow เป็นตัวแทนจำหน่ายสินค้า Wichita Clutch แต่เพียงผู้เดียวในประเทศไทย

Literature

Tension Brake Modevo. pdf (Catalog)
