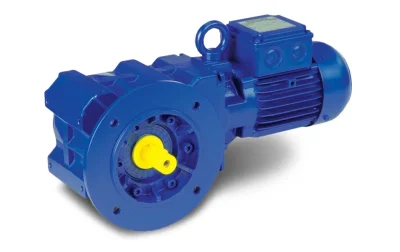

Bauer Gear Motor | BK Series Helical Bevel Geared Motor
The BK series helical bevel geared motor is the perfect combination of efficiency and versatility, combining the precision of helical and bevel gearing. Its unique design facilitates a 90-degree change in drive direction making it indispensable for space conscious installations requiring both a compact form and reliable performance. From conveyors to mixers, the BK series meets industrial challenges head-on with durability and smooth operation.
Product description
Features
- Torque 80 ... 18.500 Nm
- Output Speeds 0,2 ... 280 min-1
- versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®
- Additional features:
Connecting with Plug connectors.
With integrated inverter up to 7,5kW. - CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Corrosion category based on DIN ISO 12944-5
C1, C2, C3, C4, C5-I, C5-M
