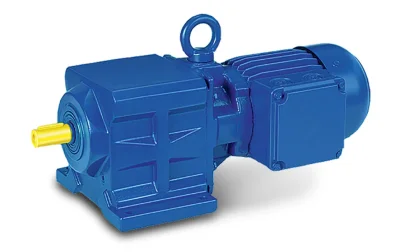

Bauer Gear Motor | BG Series Inline Helical Geared Motor
Short Description
The BG series inline helical geared Motor merges an accessible design with enduring reliability. Crafted to elevate simple industrial applications, its economical construction provides industries with a cost-effective solution without compromising performance. With torque capacities ranging from 20Nm to 18.500Nm and output speeds of 0.3 to 450 min⁻¹, the BG series ensures precision and versatility across many applications
Brands: Bauer Gear Motor
Categories:
Gear Drives and Gear Motors
Product description
Features
- Torque 20 ... 18.500 Nm
- Output Speeds 0,3 ... 450 min-1
- versatile installation possibilities
- Completely enclosed, sealed against dust and water spray
- Lubrication change first after 15000 hrs
- Low noise gearing
- Mains connection 110 ... 690V, 50/60Hz
- Enclosure IP65 (Standard), IP66 (Optional)
- Connection Standard with CAGE CLAMP®
- Additional features:
Connecting with Plug connectors.
With integrated inverter up to 7,5kW. - CE-Mark
- CSA, UL, ATEX, GOST, CCC, ISO9001, ISO14001, OHSAS18001
- Motors according to EN 60034
- Corrosion category based on DIN ISO 12944-5
C1, C2, C3, C4, C5-I, C5-M
Product Example
BG10-91/DO8LA4
BG40Z-11/DVO8MA4
BG50G10-11/D07LA4
BG60-11/DSE09LA4
